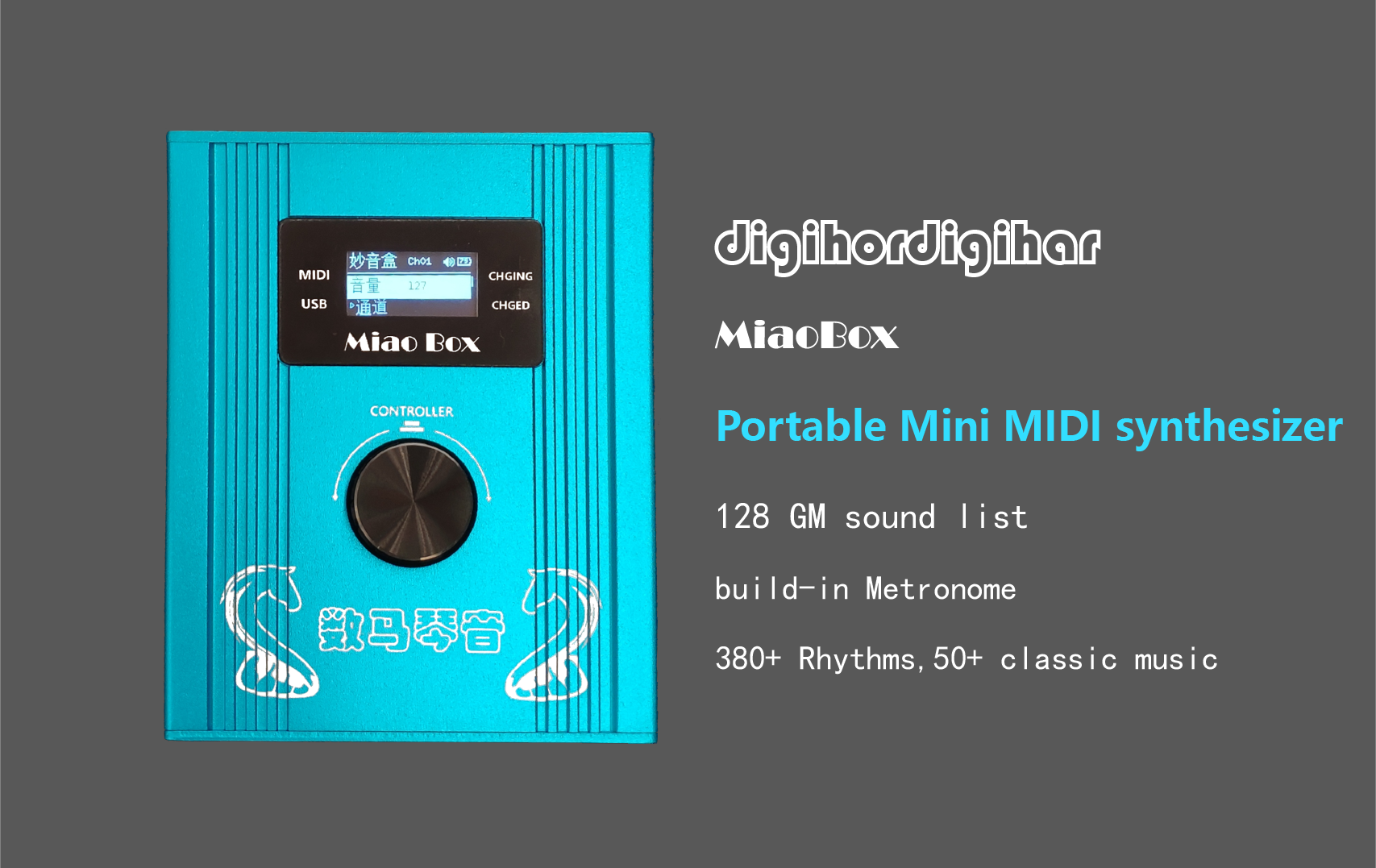

Miaobox with 102×82×29mm 3-dimension size, slightly thicker than a short wallet, it can be easily put into the bag or even coat pocket. Easy to carry and play outside. Both Chinese and English languages are provided, and all functions can be operated with the only button&rotary. Relevant information is displayed on the OLED screen.

There are 128 standard GM timbres in the Miaobox, including piano, guitar, bass, harmonica, saxophone and other instruments. Maximum 64 polyphony, and 16bit/37.5kHz high-quality stereo audio output.

    The Miaobox provides a 3.5mm TRS MIDI interface and a USB-MIDI interface. A 3.5mm TRS to 5-pin MIDI male cable is attached. One 5-pin MIDI output instrument and one USB-MIDI output instrument can be connected at the same time. The two instruments can be played simultaneously. Accompanied by one piano (or other electronic instrument), one piano (or other electronic instrument) performs the melody. USB-MIDI port can play the role of mobile power supply and provide DC5V power supply for external low-power musical instruments(ouput I ≤500mA).

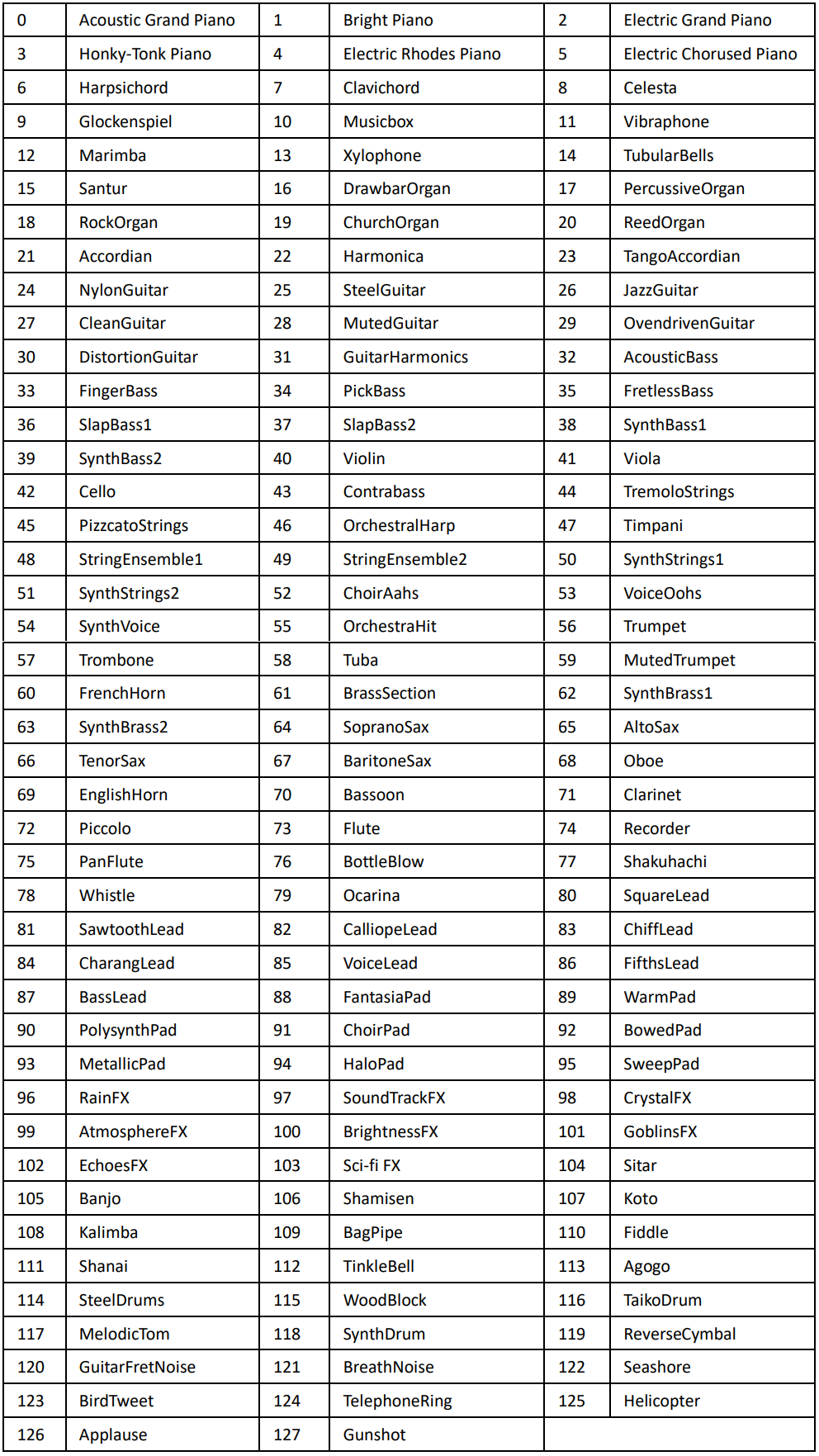

The Miaobox can adjust the volume, timbre(See "General Sounds List" table),pan,vibrato,equalizer,chorus,reverb,spatial,tuning,scale tuning,TVF,envelope effect parameters. Parameters can be set separately for each MIDI channel. It can automatically identify the channel of externally connected instruments and lock the channel for parameter setting. When setting relevant parameters on the connected instrument, the Miaobox will automatically synchronize.

Here are some actual playing effects of timbre.

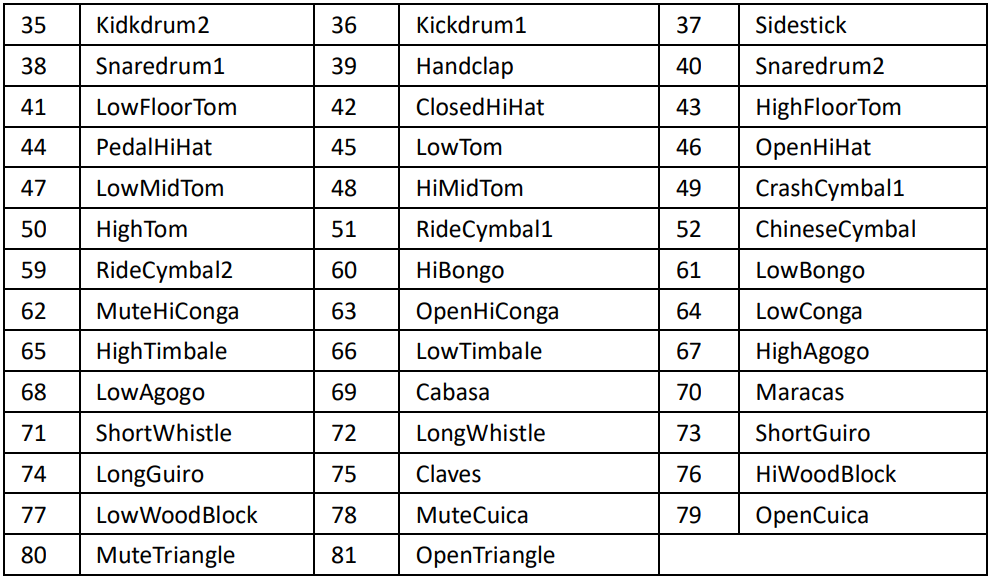

The built-in metronome function of the Miaobox can set the BPM beat speed and type(3/4,3/8 and so on). "Strong", "sub strong" and "weak" timbres(See "Metronome Sounds List" table） and volume can be selected. When the metronome beats, external instruments can play at the same time.

There are 14 categories of 380+ rhythms in the Miaobox, including some typical rhythms of blues, country, folk, jazz, rock, rap and other styles. Users can choose by themselves. When playing rhythm, external instruments can play at the same time.

Here are some actual effects of rhythm.

There are 50+ classic music in the Miaobox. Like

and other famous ones. Users can enjoy them in their leisure time. It will be more gorgeous if you use headphones. The above links are actual effect clips of the according classic tracks.

There are stereo speakers in the Miaobox. When the audio output jack is not connected to the headset or external amplifier, the internal speakers will sound. The smart sound box has a built-in 1800mAh lithium battery, which can be used for several hours normally.

The TYPE-C "CHARGE(DC5V)" socket of the Miaobox can not only charge the built-in battery, but also update the firmware to continuously expand the system functions。 For more information about firmware updating, please refer to "Miaobox(Blue) : How to update firmware?" in Faq.
